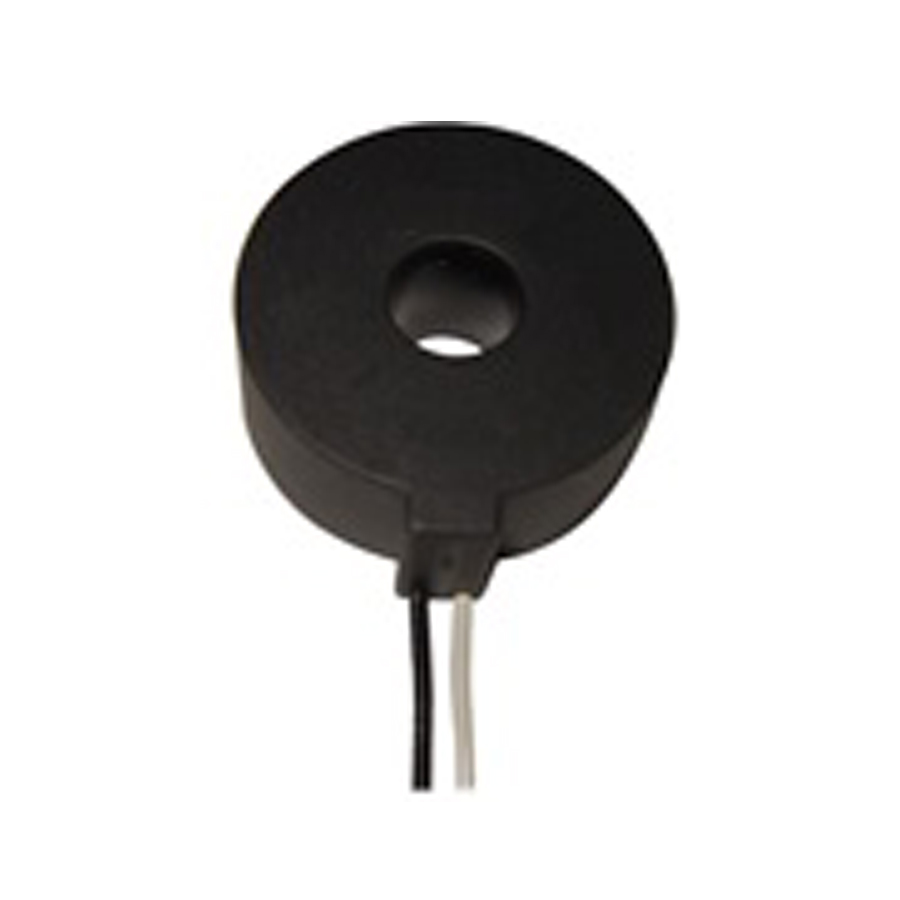

Description
FEATURES:
*High precision,wide linearity range for output current
*Lead terminal,suitable for varied distance mounting
*High precision,wide linearity range for output current
ELECTRICAL SPECIFICATIONS
| No. | Rated Primary Current | Maximum primary Current | Rated Secondary Current | Accuracy Class | Rated Burden |
|---|---|---|---|---|---|
| -10 | 5A | 10A | 5mA | 0.1 0.2 0.5 1.0 3.0 5.0 | 10Ω 20Ω 40Ω |
| -20 | 10A | 30A | 5mA | ||
| -25 | 20A | 60A | 8 mA |
MECHANICAL DIMENSIONS in mm
TEST CIRCUITRY
APPLICATIONS
*Electronic measuring instruments
*Electrical monitor
*Control-protection devices
